MMC (Metal Matrix Composites)Japan Fine Ceramics Co.,Ltd.

MMC (Metal Matrix Composites)

Do you have any difficulties concerning:
  • Heavy weights
  • Deflection
  • Thermal expansion
  • Vibration

The answer is MMC. Your best solution!!

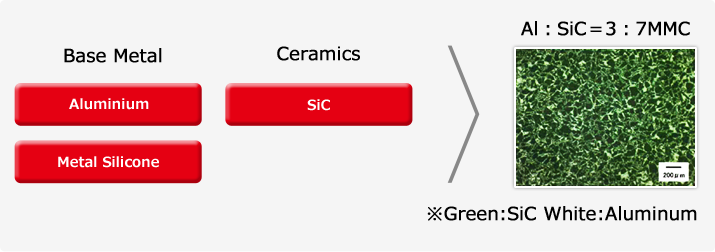

MMC, Metal Matrix Composites represent a new type of material -- composites combining Metal & Ceramics.

MMC, Metal Matrix Composites is a new material, <br>composites combined Metal & Ceramics.

1

Advantage

Light Weight・High Rigidity

SA(SiC / Al), SS(SiC / Si)

MMC are light weight, the same as Aluminum, and much stiffer than cast iron. Light weight/High rigidity will contribute to higher product performance for moving parts.

Very Light Weight・High Rigidity

2

Advantage

Thermal Properties

SA(SiC / Al), SS(SiC / Si)

MMC have high thermal conductivity and low thermal expansion. These values are changeable depending on the metal and the Metal/Ceramics ratio. For example, MMC can prevent stress from high temperature as it has similar thermal expansion values to the materials it is in contact with. Due to high thermal conductivity, MMC are suitable as heat sink base materials.

~Thermal Properties~

Thermal Properties

3

Advantage

Hard to chip

SA(SiC / Al)

One of the disadvantages of Ceramics is to chip easily. MMCs have high fracture toughness because they are Metal/Ceramic composite materials. Also, MMC can easily be made in larger sizes and formed/molded in complex shapes.

~Comparison with Ceramics~

Liable to chip

4

Advantage

High Vibration Damping

SA(SiC / Al)

MMC can offer higher vibration damping than other composites materials.
Compared to conventional materials, the half-life of vibration is very short, so MMC are suitable for stop & go parts. Check this high vibration damping in the video below.
※SA301 in the video shows our MMC.

Application

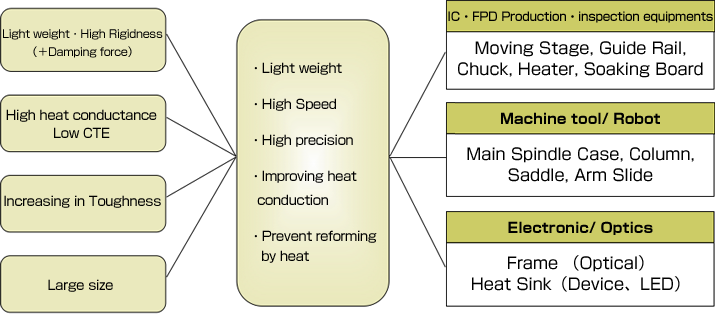

Product performances are much improved by using MMC on moving parts for which high speed and high mechanical precision are required, and MMC contributes heat conduction too.

Characteristic Benefits Application

High Vibration Damping

1

Usage example

Satellite Hayabusa2

Satellite Hayabusa

MMC is being used in a Japanese satellite, "Hayabusa 2", as rings on its Microwave Discharge Ion Engine, because of its light weight, low thermal expansion and quick absorption of vibration.

2

Usage example

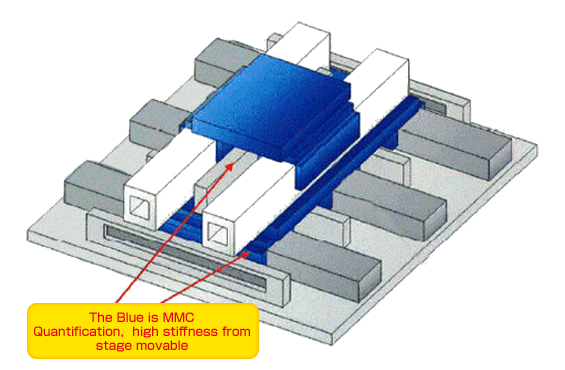

Moving Stage

MMC are the most suitable material for moving stages because of their extremely high rigidness and thermal conductivity.

  • Very light weight (the same as aluminum) & high rigidness (better than cast Iron)
  • High Vibration Damping:Quick response and smooth stop
  • Thermal expansion:Lower distortion by heating (similar to stainless steel guide's thermal expansion)
  • Thermal conductivity・high heat emissivity: Lower heat generation on linear motor
  • Same shape: No change of your existing mold

Moving Stage

Video shows extremely high performance of MMC. Click here →

3

Usage example

Machine tools

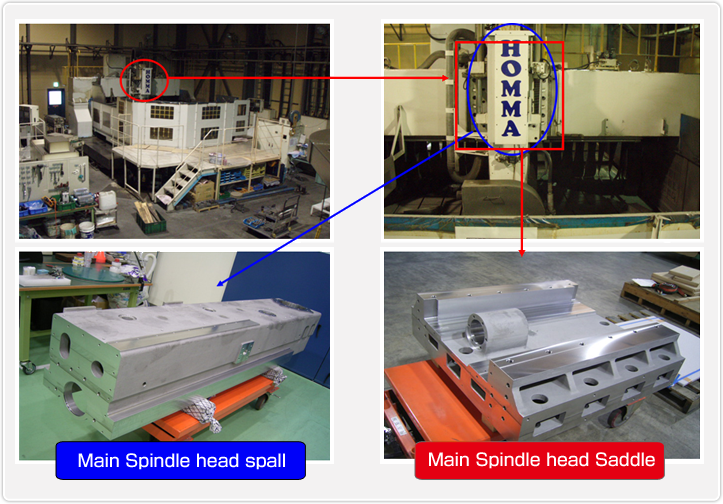

Usage Example: for Machine tool(4m Rotary Grinder)

To reduce weight and improve rigidity, MMC is used on the moving portions of large machining centers.

Machine tools

Line-up

SA301 SA401
SA301 SA401

The composite material contains 30~40vol% SiC in aluminum alloys.
Has the same weight as cast aluminum and a higher Young's Modulus than cast iron. Consequently, it is suitable for the making of complex shapes and larger sizes and for manufacturing smaller size items.

features

・Light weight
・Low thermal expansion
   About 1/3 of cast iron
・High thermal conductivity
・High stiffness

applications

  • Table for LCD manufacturing equipment
  • Part of the high-speed chip mounter
  • Moving parts of machine tools
SA701
SA701

The composite material is infiltrated Aluminum in porous ceramics(SiC).
Compared with ceramics, it provides flexibility in sizing.

features

・Light weight
・High toughness
・High stiffness
・High abrasion resistance

applications

  • Table for LCD manufacturing equipment
  • Wearing parts for Jet mill liners
  • Heat spreader
SS501 SS701
SS501 SS701

The composite material is infiltrated Silicon in porous ceramics SiC.
Compared with SiC ceramics, it provides greater flexibility in sizing.

features

・Light weight
・Low thermal expansion
・High stiffness
・High thermal conductivity

applications

  • Heat spreader
  • Vacuum chuck
  • Carrier arm for Semiconductor equipment

Machine tools
